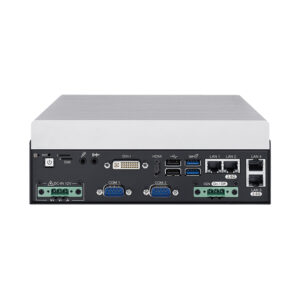

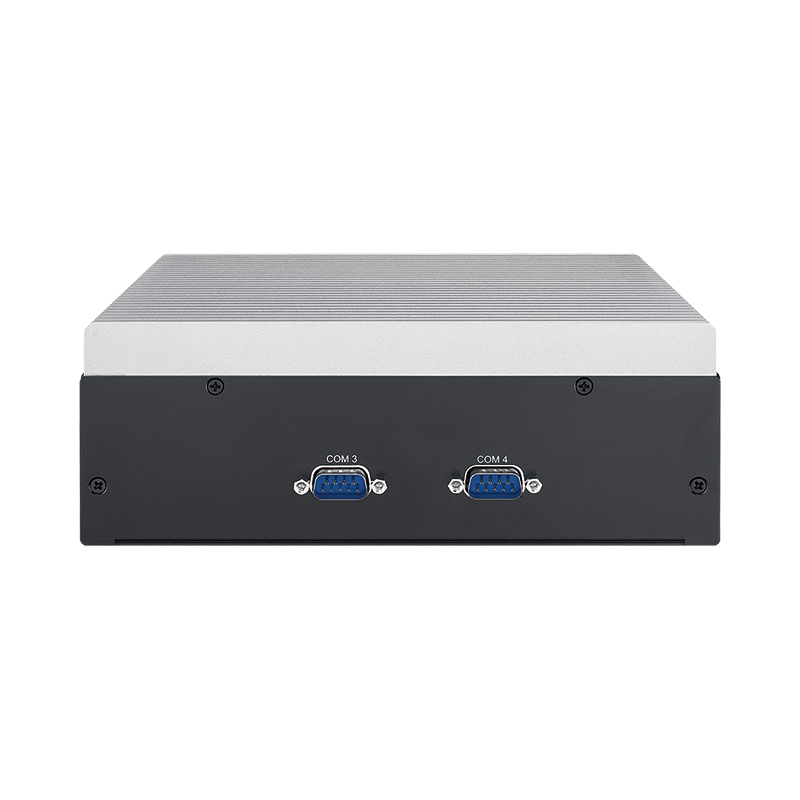

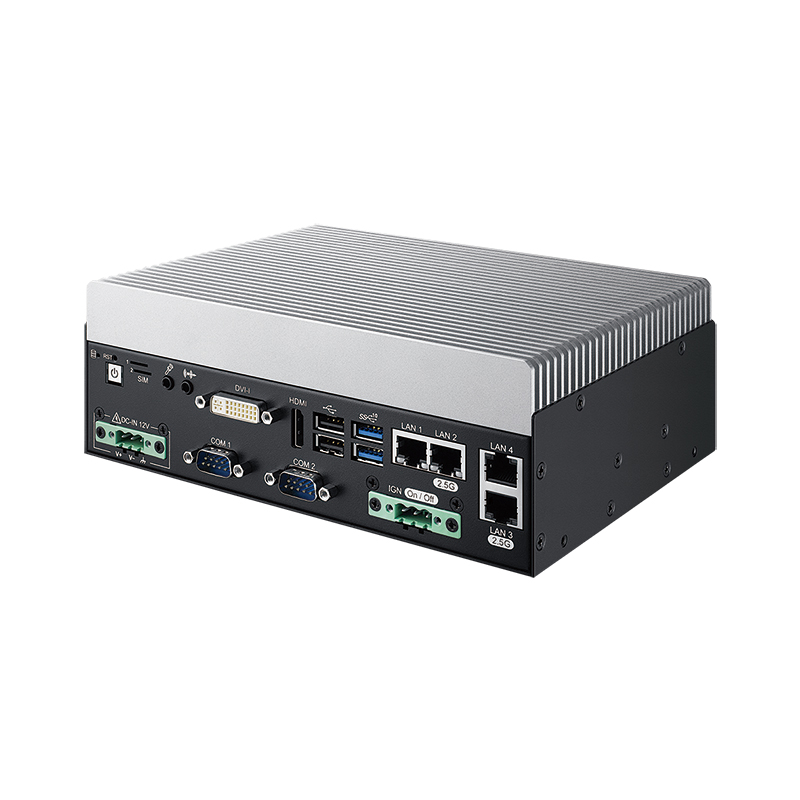

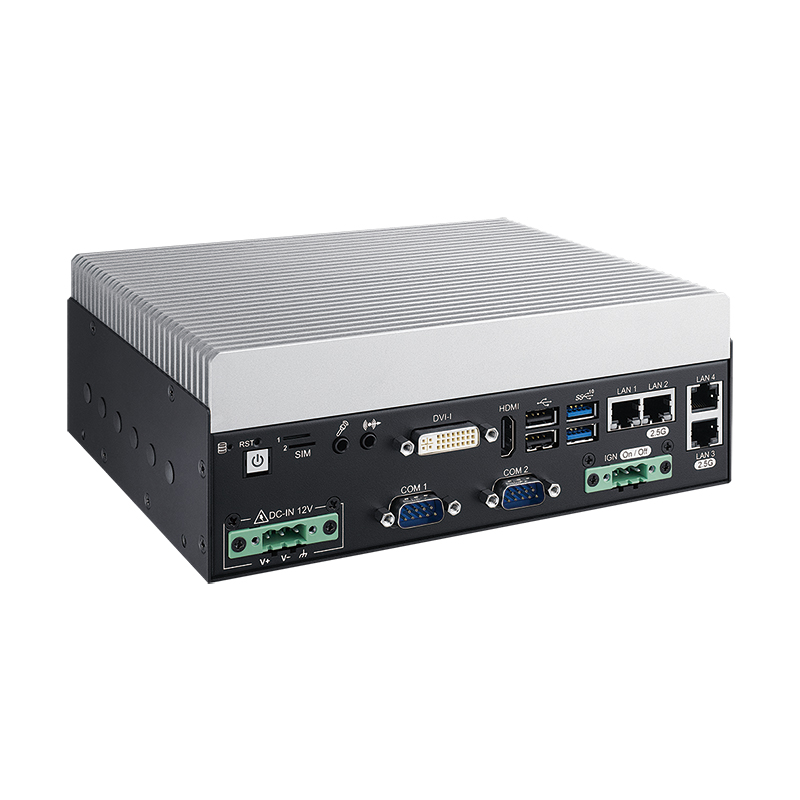

VCM-2000
製品特長
PRODUCT FEATURE
・Intel® Core™ 200Sシリーズ及び Intel® Core™ プロセッサ（コードネーム : Bartlett Lake-S/Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake‐S）、Intel® H610E PCH搭載
・2 DIMMスロット、最大96GB DDR5 5600MHzメモリ対応
・USB 3.2×2、USB 2.0×2、COM（RS-232/422/485）×2
・独立4ポート Intel® GigE LAN（うち3ポートは2.5GbE対応）
・外部SIMカードスロット×2、WiFi/4G/5G/LTE/GPRS/UMTS対応
・Key E、Key B、Mini PCIe×2（PCIe/USB/SIMカード拡張対応）
・12V DC定電圧入力、オプションで9V〜36VのワイドレンジDC入力対応、ソフトウェアイグニッションコントロール対応
-・40°C〜60°C の動作温度に対応
製品仕様
Product Specifications
| System | |
| Processor |
– 24-core Intel® Core™ 200S Series Processor (Bartlett Lake-S)
– 24-core 14th Gen Intel® Core™ i9/i7/i5/i3 Processor (Raptor Lake-S Refresh)
– 24-core 13th Gen Intel® Core™ i9/i7/i5/i3 Processor (Raptor Lake-S)
– 16-core 12th Gen Intel® Core™ i9/i7/i5/i3 Processor (Alder Lake-S)
|
| Chipset | Intel® H610E |
| BIOS | AMI |
| SIO | IT8786E |
| Memory | 2 DDR5 5600MHz SO-DIMM, up to 96GB |
| OS | Windows 11, Window 10, Linux |
| I/O Interface | |
| Serial | 2 COM RS-232/422/485 |
| USB |
– 2 USB 3.2 Type-A
– 2 USB 2.0 Type-A
|
| LED | Power, HDD |
| SIM Card | 2 External SIM Card Sockets |
| Expansion | |
| M.2 |
– 1 M.2 Key E Socket(2230, PCIex2/USB2)
– 1 M.2 Key B Socket(2280/3042/3052, PCIex1/default USB3.2/USB2.0) with SIM
|
| Mini PCIe |
– 1 Full-size Mini PCIe (PCIex1, SATA, USB2)
– 1 Full-size Mini PCIe (PCIex1, SATA, USB2) with SIM
|
| Graphics | |
| Graphics Processor | Intel® Xᵉ LPG Graphics architecture, up to 4Xᵉ Graphics Engines |
| Interface |
– 1 HDMI 2.0: Up to 3840 x 2160 @60Hz
– 1 DVI-I: Up to 1920 x 1080 @60Hz
|
| Storage | |
| SATA | 2 SATAIII (6Gbps) for SSD/HDD |
| M.2 |
– 1 M.2 Key M Socket (2242/2280, PCIex4)
– 1 M.2 Key B Socket (2280, PCIe x2, share with expansion)
|
| mSATA | 2 SATA III (Mini PCIe Type, 6Gbps, share with expansion) |
| Ethernet | |
| LAN 1 | Intel® I219LM GigE LAN |
| LAN 2 | Intel® I226 2.5 GigE LAN |
| LAN 3 | Intel® I226 2.5 GigE LAN |
| LAN 4 | Intel® I226 2.5 GigE LAN |
| Power | |
| Power Input |
VCM-2000: 12V DC-in
VCM-2000A: 9V to 36V wide range DC-in
|
| Power Interface | 3-pin Terminal Block: V+, V-, Frame Ground |
| Ignition Control | 16-mode Software Ignition Control |
| Remote Switch | 3-pin Terminal Block |
| Others | |
| TPM | Infineon SLB9670 supports TPM 2.0, SPI Interface |
| Watchdog Timer | Reset : 1 to 255 sec./min. per step |
| Smart Mgmt. | Wake on LAN, PXE supported |
| HW Monitor | Monitoring temperature, voltages. Auto throttling control when CPU overheats. |
| Mechanical | |
| Dimension | 209.0mm x 150.5mm x 75.0mm (8.23″ x 5.93″ x 2.95″) |
| Weight | 2.31kg (5.09lb) |
| Mounting |
– Wallmount by mounting bracket
– VESA Mount (Optional)
– DIN Rail Mounting (Optional)
|
| Environment | |
| Operating Temperature |
– 35W TDP CPU with heat sink: -40°C to 60°C (-40°F to 140°F) with air flow
– 65W TDP CPU with fan sink : -40°C to 60°C (-40°F to 140°F)
|
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative Humidity | 95% @60°C |
| Shock |
– IEC 60068-2-27
– SSD : 50G @wallmount, Half-sine, 11ms
|
| Vibration |
– IEC 60068-2-64
– SSD : 5Grms, 5Hz to 500Hz, 3 Axis
|
| EMC | CE, FCC, ICES, EN50155, EN50121-3-2 |
∧
