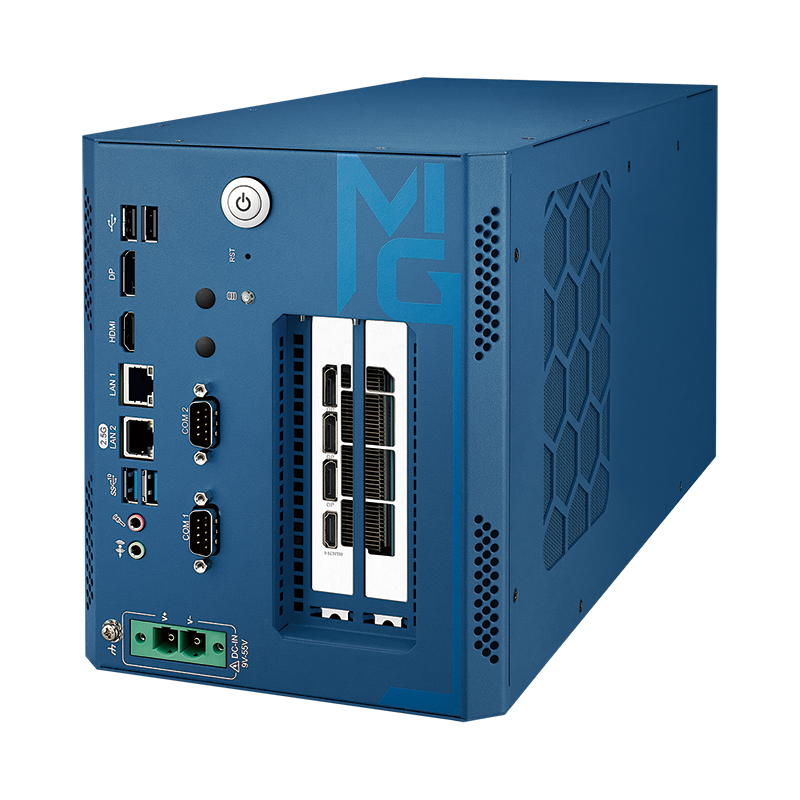

MIG-3000
製品特長
PRODUCT FEATURE
Intel® Core™ i9/i7/i5/i3 プロセッサー（第12/13/14世代、Raptor/Alder Lake）とIntel® H610Eチップセットを搭載し、最大65W TDPのCPUをサポート
DDR5 4800MHzメモリ×2基、最大64GBをサポート
ストレージ用M.2 2242/2280 NVMeスロット×1基とSATA IIIポート×2基
拡張スロット：M.2 2230 Key E×1基、PCIe x16拡張スロット×1基で、独立型2スロットグラフィックカードに最大900Wの電力供給が可能
DC 9V～55Vのワイドレンジ電源入力
動作温度範囲：0℃～60℃
製品仕様
Product Specifications
| System | |
| Processor |
– 24-core Intel® Core™ i9/i7/i5/i3 Processor (14th gen, Raptor Lake-S Refresh)
– 24-core 13th Gen Intel® Core™ i9/i7/i5/i3 Processor (Raptor Lake-S)
– 16-core 12th Gen Intel® Core™ i9/i7/i5/i3 Processor (Alder Lake-S)
|
| BIOS | AMI |
| SIO | NCT6126D |
| Memory | 2 DDR5 4800MHz SO-DIMM, up to 64GB |
| OS | Windows 11, Windows 10, Linux |

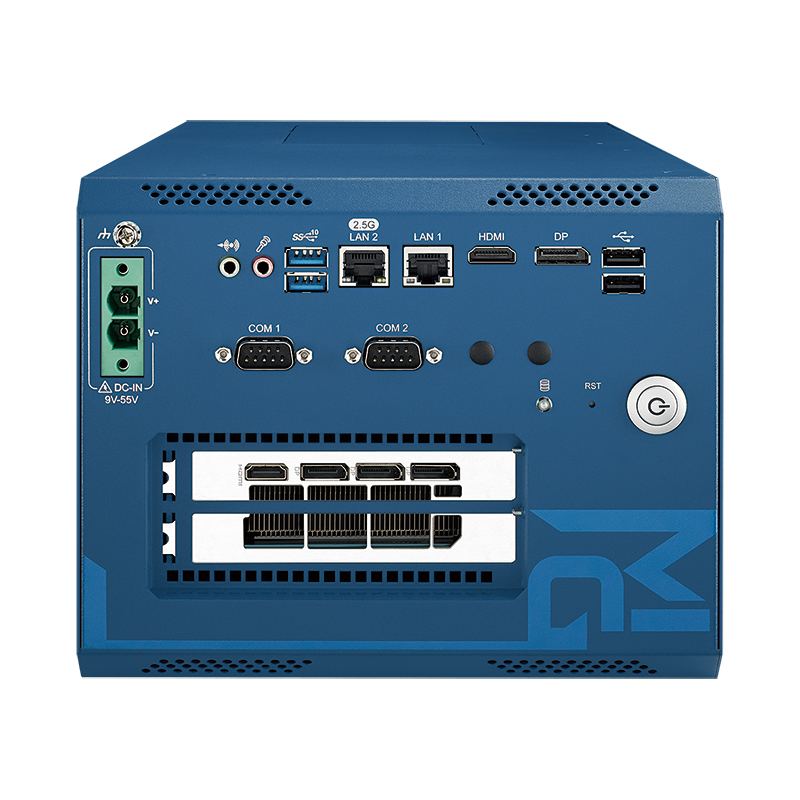

| I/O Interface | |
| Serial | 2 COM RS-232/422/485 |
| USB |
– 2 USB 3.2 Type-A
– 2 USB 2.0 Type-A
|
| LED | Power, HDD |
| Graphics | |
| Graphics Processor |
– Intel® UHD Graphics 770/730 driven by Intel® Xe Architecture
– Independent Graphics : By request
|
| Interface |
– 1 DP 1.2a: Up to 3840 x 2160 @60Hz
– 1 HDMI 1.4: Up to 3840 x 2160 @30Hz
|
| Expansion | |
| PCIe | 1 PCIe 4.0 x16 |
| M.2 | 1 M.2 Key E Socket (2230, PCIe x1/USB2) |
| Storage | |
| SATA | 2 SATA III (6Gbps) |
| M.2 | 1 M.2 Key M Socket (2242/2280, PCIe x4/SATA) |
| Audio | |
| Audio Codec | Realtek® ALC897, 7.1 Channel HD Audio |
| Audio Interface | 1 Mic-in, 1 Line-out |
| Ethernet | |
| LAN 1 | Intel® I219V GigE LAN |
| LAN 2 | Intel® I225LM 2.5GigE LAN |
| Power | |
| Power Input | DC 9V to 55V |
| Power Interface | 2-pin Terminal Block：V+, V- |
| Others | |
| TPM | Infineon SLB9670 supports TPM 2.0, SPI Interface |
| Watchdog Timer | Reset : 5 to 255 sec./min. per step |
| Smart Mgmt | Wake on LAN supported (LAN1 only) |
| HW Monitor | Monitoring temperature, voltages. Auto throttling control when CPU overheats. |
| Mechanical | |
| Dimension | 162.7mm x 203.0mm x 385.0mm (6.41″ x 7.99″ x 15.16″) |
| Weight | 5.3 kg (11.45 lb) |
| Mounting | Wallmount by mounting bracket |
| Environment | |
| Operating Temperature | 0°C to 60°C (32°F to 147°F) |
| Storage Temperature | -20°C to 80°C (-4°F to 176°F) |
| Humidity | 5% to 90% relative humidity, non-condensing |
| Relative Humidity | 90% @ 60°C |
| Shock/Vibration |
– IEC 61373 : 2010
– Railway Applications : Rolling Stock Equipment, Shock and Vibration Tests
|
| EMC | CE, FCC, ICES, EN50155, EN50121-3-2 |
∧
