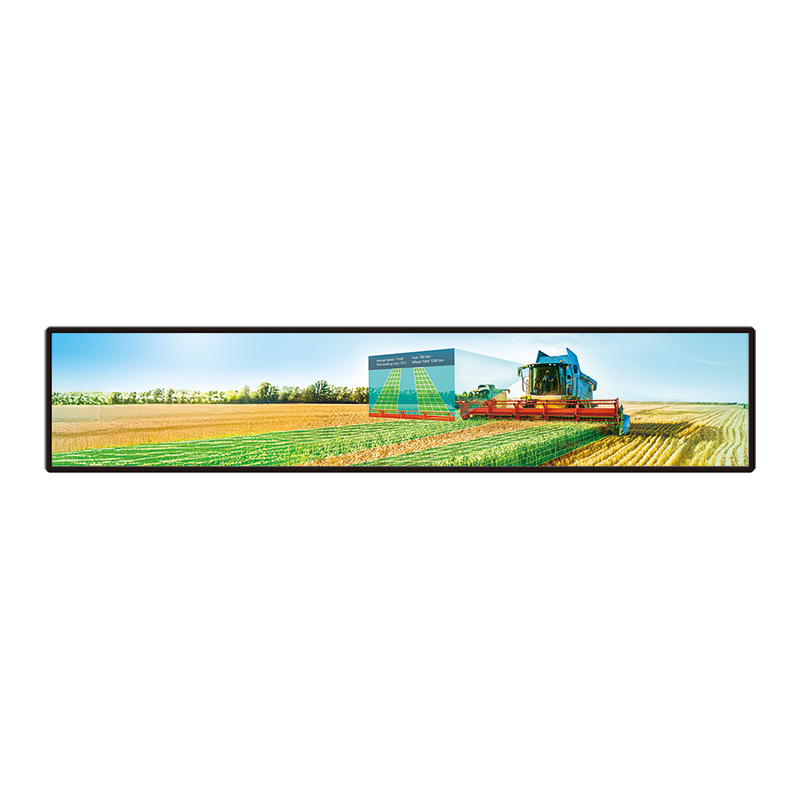

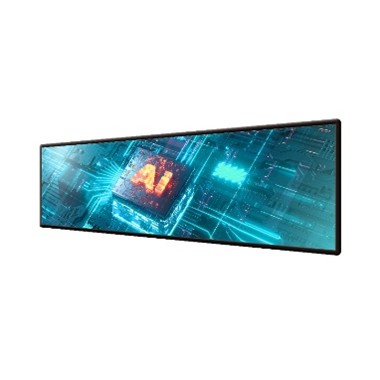

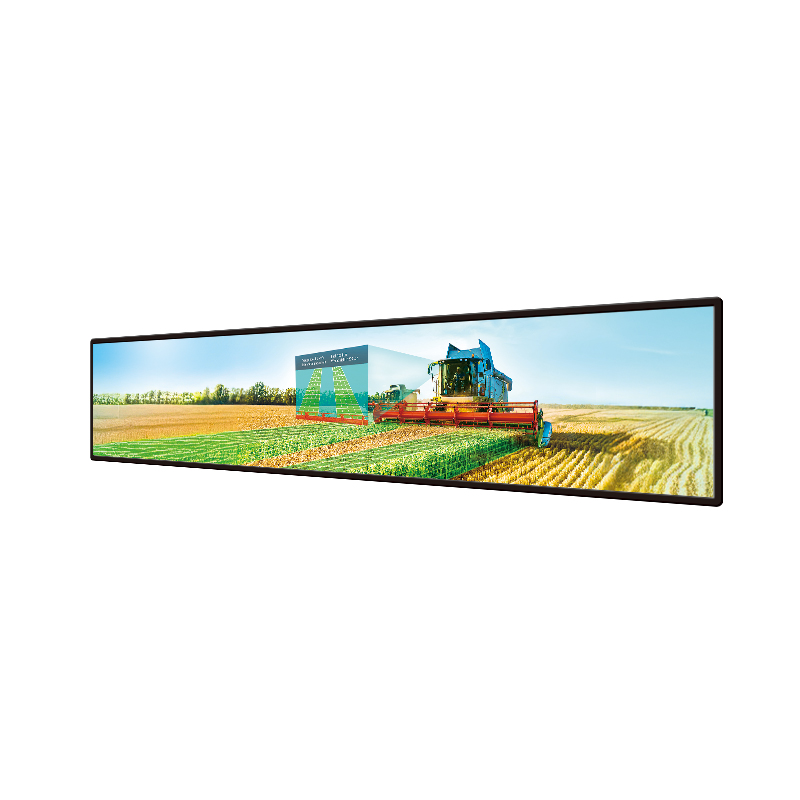

UWD-1000 (Display)
製品特長
PRODUCT FEATURE
LEDバックライト付きカラーTFT LCDディスプレイ
【モデル】
UWD-1048 48.5インチ (16:3)
UWD-1043 43インチ (16:3)
UWD-1037 37インチ (16:3)
アスペクト比 16:3、ワイド解像度 3840 x 720
高輝度1000nits、直射日光下でも視認可能
HDMI、DisplayPortインターフェース
24V DC、低消費電力
製品仕様
Product Specifications
| Display | |
| Screen Size | 48.5″ |
| Display Area | 1209.6 (H) x 226.8 (V) |
| Brightness (cd/m2) | 1000 |
| Resolution | 3840 x 720 |
| Aspect Ratio | 16:3 |
| Contrast Ratio | 3100:1 |
| Pixel Pitch (mm) | 0.315 (H) x 0.315 (V) |
| Pixel Pre Inch (PPI) | 81 |
| Viewing Angle | 178 (H) x 178 (V) |
| Color Saturation (NTSC) | 82% |
| Display Colors | 1.07G |
| Respinse Tine (Typical) | 12ms |
| Panel Interface | V-by-One |
| Input Interface |
– 1 HDMI
– 1 DisplayPort
|
| OSD Key | |
| OSD Key | 5 Keys (power Switch, Menu, +, -, Exit) |
| OSD Control | Brightness, Color, Contrast, Auto Turing, H/V Position…etc |
| Power | |
| Power Input | 24V |
| Power Consumption | 64W |
| Mechanical | |
| Dimensions | 1235 x 252.2 x 70.3 mm |
| Bezel Size | 12.7/12.7/12.7/12.7 mm |
| Mounting | – VESA (300 x 75 mm) – VESA (650 x 100 mm) |
| Weight | 10.5Kg |
| Environment | |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -20°C to 60°C |
| EMC | CE, FCC |
∧
