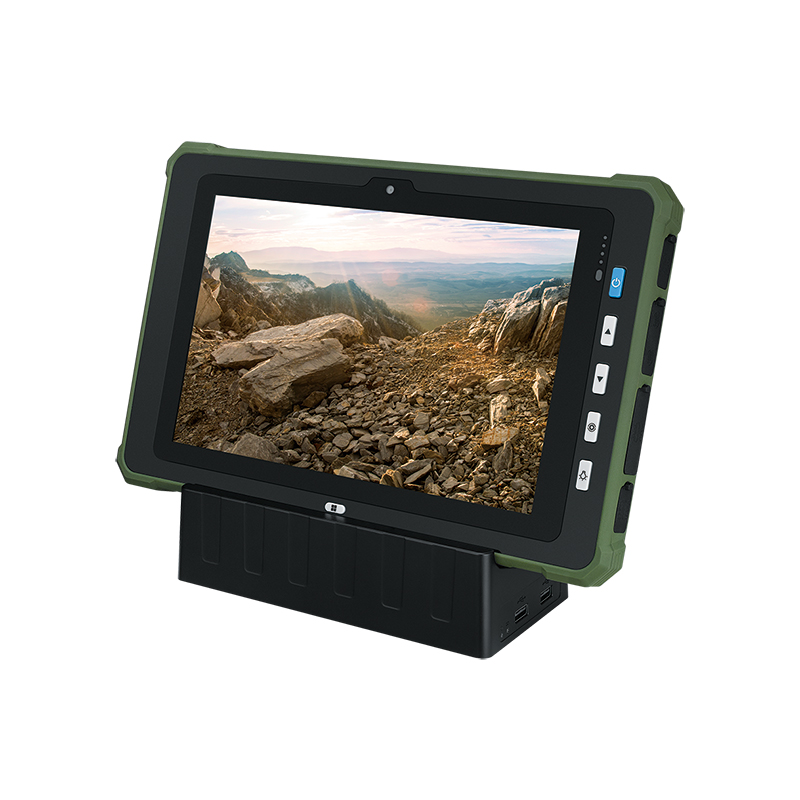

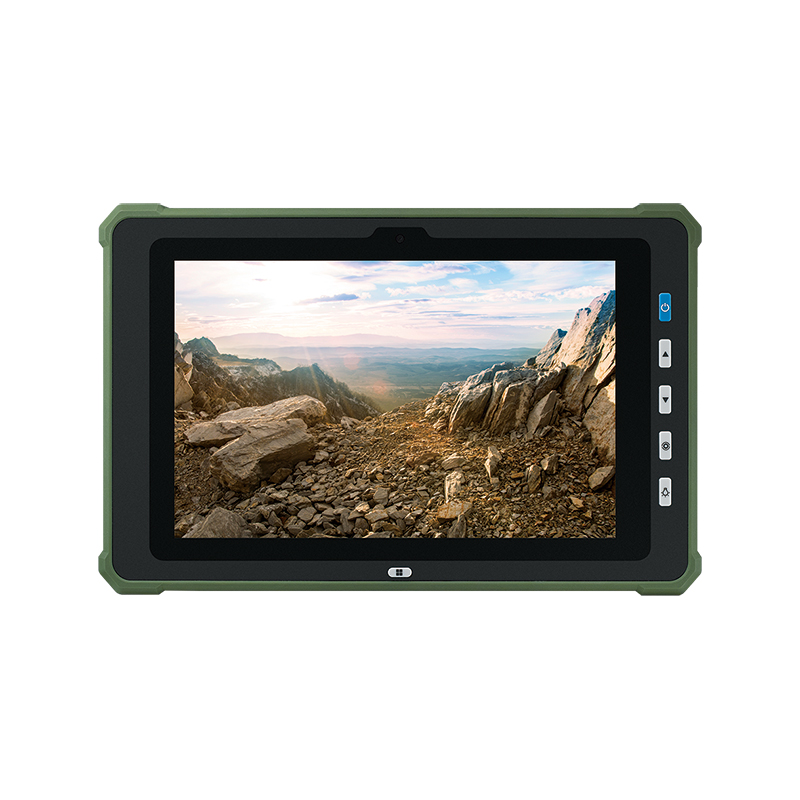

RTP-1000（IP67 タブレット）
製品特長
PRODUCT FEATURE
10.1インチIPS液晶、解像度1920 x 1200
800ニットの輝度で直射日光下でも視認性の高いディスプレイ
IP67規格準拠、MIL-STD-810H準拠の耐振動・耐衝撃性
幅広い動作温度範囲：-20°C～60°C
10点マルチタッチ対応で直感的な操作が可能
製品仕様
Product Specifications
| System | |
| Processor | 10-core 13th Gen Intel® Core™ i7-1355U Processor (Raptor Lake-U) |
| BIOS | AMI |
| Memory | 1 16GB LPDDR5 DRAM (32GB/64GB by request) |
| Storage | 1 M.2 Key M 2280, 256GB / 1TB (512GB by request) |
| OS | Windows 11 IoT |
| Display | |
| LCD | 10.1” (16:10) |
| Resolution | 1920 x 1200 |
| Brightness | 800 nits |
| Viewing Angle | Horizontal: 175°, Vertical: 175° (Typical) |
| Touch Type | Capacitive touch panel, 10 point touch |
| I/O Interface | |
| USB |
– 1 USB 3.0 Gen 2 type A
– 1 USB 3.0 Gen 2 type C with PD function (57W)
|
| LAN | 1 GigE LAN by RTL8111H |
| COM | 1 DB9 RS-232 |
| Display | 1 Mini HDMI, HDMI2.1 (48 Gbps) |
| Audio | 1 3.5 mm Line-Out Jack |
| Physical Key |
– 1 Power BTN
– 1 Volume + BTN
– 1 Volume – BTN
– 1 Windows BTN
– 1 Light Bulb BTN (configurable)
– 1 Gear BTN (configurable)
|
| LED |
– 1 Power LED
– 1 HDD LED
– 1 Battery level LED
|
| Expansion | |
| M.2 |
– 1 M.2 Key M Socket (2280, PCIex4)
– 1 M.2 Key B Socket (3042/3052, USB3.0/USB2.0) with Micro SIM
|
| Docking | Docking Connector (2x USB 2.0 Type A, RS232, RJ45, charge 19V@3A) |
| Wireless | |
| Wifi | Intel® Wi-Fi 6 AX201, 802.11(a/b/g/n/ac) |
| Bluetooth | Bluetooth® 5.2 |
| Other | 4G/5G via M.2 (by Request) |
| Sensor | |
| Camera |
– 1 Front side Camera (5MP Fixed focal length)

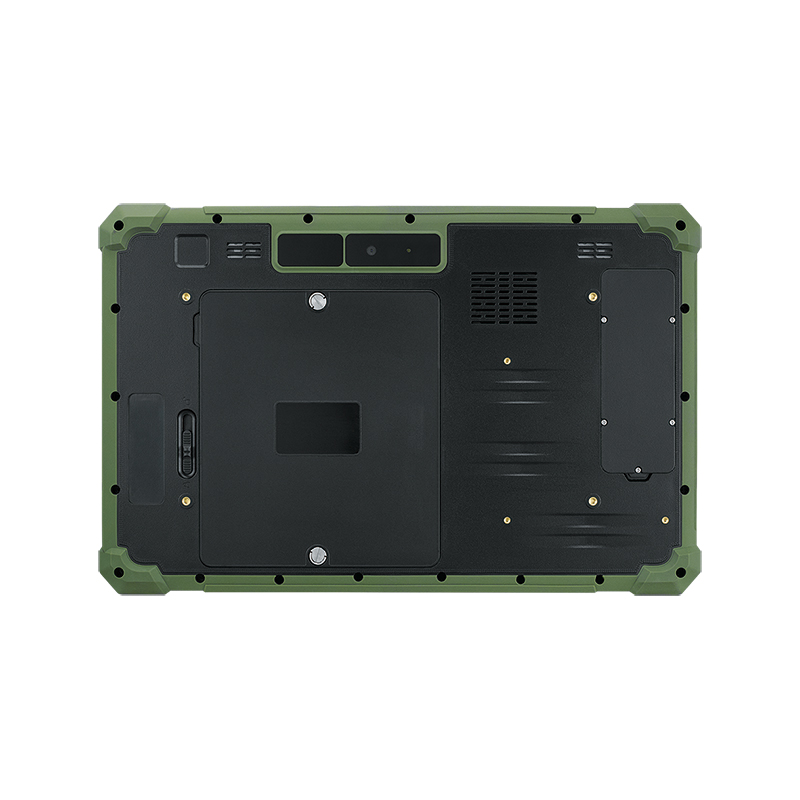

– 1 Rear side Camera (8MP Auto focus)
|
| NFC | ICM550UEM |
| Sensor | MXC6655XA |
| Power | |
| Power Input | 19V DC-IN |
| Power Interface | DC-IN Jack |
| Battery | 10000 mAh, 7.6V, 10-hour |
| Others | |
| TPM | Intel’s Trusted Platform Module (Intel® PTT) |
| HW Monitor | Monitoring temperature, voltages. Auto throttling control when CPU overheats. |
| Mechanical | |
| Dimensions | 298 x 192.6 x 25.8mm |
| Weight | 1,450g (with battery) |
| Environment | |
| Operating Temp. | -20°C to 60°C (-4°F to 140°F) |
| Storage Temp. | -30°C to 70°C (-22°F to 158°F) |
| Humidity | 5% to 90% Humidity, non-condensing |
| Relative humidity | 90% @60°C |
| High Temperature | MIL-STD-810H Method 501.7, Procedure II |
| Low Temperature | MIL-STD-810H Method 502.7, Procedure II |
| Vibration | MIL-STD-810H: 2019, Method 514.8, Procedure I, Category 4 |
| Shock | MIL-STD-810H: 2019, Method 516.8, Procedure I |
| IP Rating | IP 67 |
| EMC | CE, FCC |
∧
