ECX-3000 PEG
製品特長
PRODUCT FEATURE
・インテル® Core™ 200Sシリーズおよびインテル® Core™ プロセッサ(第14/13/12世代)（コードネーム : Bartlett Lake-S/Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake‐S）搭載
・最大200Wまで各種GPUボードへの給電可能
・USB 3.2 Gen 2x2装備による20Gbpsのデータ転送速度を実現
・DC電源で最大12V-50V入力サポート、ソフトウェアによるイグニッション制御
・独立で動作する2.5G PoE+LANポート4基と2基GigE LANポート装備
・5G/WiFi/BT/4G/LTE/GPRS/UMTS、インテル® vPro、TCC、TSNとTPM 2.0サポート
・4枚2.5インチSSDフロントアクセス対応、M.2 Key M装備
-

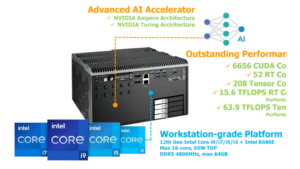

High-speed AI Inference Platform
・Workstation-grade Platform : Intel® Core™ 200S Series and 14/13/12th Gen Intel® Core™ Processor (codename: Bartlett Lake-S/Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S), up to 65W TDP CPU supported
・Dual DDR5 5200MHz SO-DIMM, up to 96GB Memory
・Supports performance hybrid architecture and advanced AI capabilities for smarter and faster applications
・Optional delivers outstanding AI computing productivity supporting max 6656 CUDA Cores, 52RT Cores, 208 Tensor Cores, delivers 15.6 TFLOPS RT Core performance, and 63.9 TFLOPS Tensor Core performance
・High-speed data transfer : PCIe 4.0 (16GT/s), USB 3.2 Gen 2x2 Type-C (20G), USB 3.2 Gen 2 (10G), SATA III (6G), 2.5GigE LAN (2.5G), GigE LAN (1G)
・Optional VHub One-Stop AIoT Solution Service supports OpenVINO based AI accelerator and advanced Edge AI applications
-

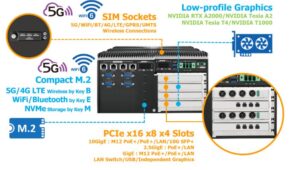

Flexible Configuration
・Levels of Independent Low-profile PEG : NVIDIA RTX A2000, NVIDIA Tesla A2, NVIDIA Tesla T4, NVIDIA T1000
・Versatile product configuration for project requirements
・SIM sockets for multiple 5G/WiFi/BT/4G/LTE/GPRS/UMTS wireless connections
・PCIe expansions for multiple 10GigE M12 PoE+ LAN, 10GigE PoE+ LAN, 10GigE LAN, 10G SFP+, 2.5GigE PoE+ LAN, 2.5GigE LAN, M12 PoE+ LAN, PoE+ LAN, GigE LAN, LAN Switch, USB, or Independent Graphics
・Compact Expansions : Mini PCIe, M.2 Key B, and M.2 Key
-

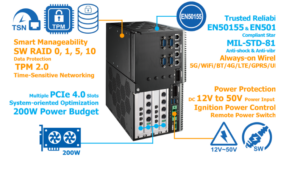

Optimized Operation
・Max 200W power budget for independent graphics cards
・Multiple 5G/WiFi/BT/4G/LTE/GPRS/UMTS supports non-stop wireless data transfer
・Lockable SSD/HDD trays, RAID 0, 1, 5, 10 Data Protection
・DC 12V to 50V wide range power input
・Software Ignition Power Control for in-vehicle applications
・Anti-shock, Anti-vibration
・EN50155, EN50121-3-2
・Real-time capable with Intel Time Coordinated Computing (Intel TCC) and support for Time-Sensitive Networking (TSN)
・Smart System Management : Intel vPro, TPM 2.0, PXE, Wake on LAN, Watchdog Timer
製品仕様
Product Specifications
| システム | |
| プロセッサ |
– 24-core Intel® Core™ 200S Series Processor (Bartlett Lake-S)
– 24-core Intel® Core™ i9/i7/i5/i3 Processor (14th gen, Raptor Lake-S Refresh)
– 24-core 13th Gen Intel® Core™ i9/i7/i5/i3 Processor (Raptor Lake-S)
– 16-core 12th Gen Intel® Core™ i9/i7/i5/i3 Processor (Alder Lake-S)
|
| チップセット | Intel® R680E Chipset |
| BIOS | AMI |
| SIO | IT8786E |
| メモリ | 2 DDR5 5200MHz SO-DIMM, up to 96GB |
| OS | Windows 11, Windows 10, Linux |

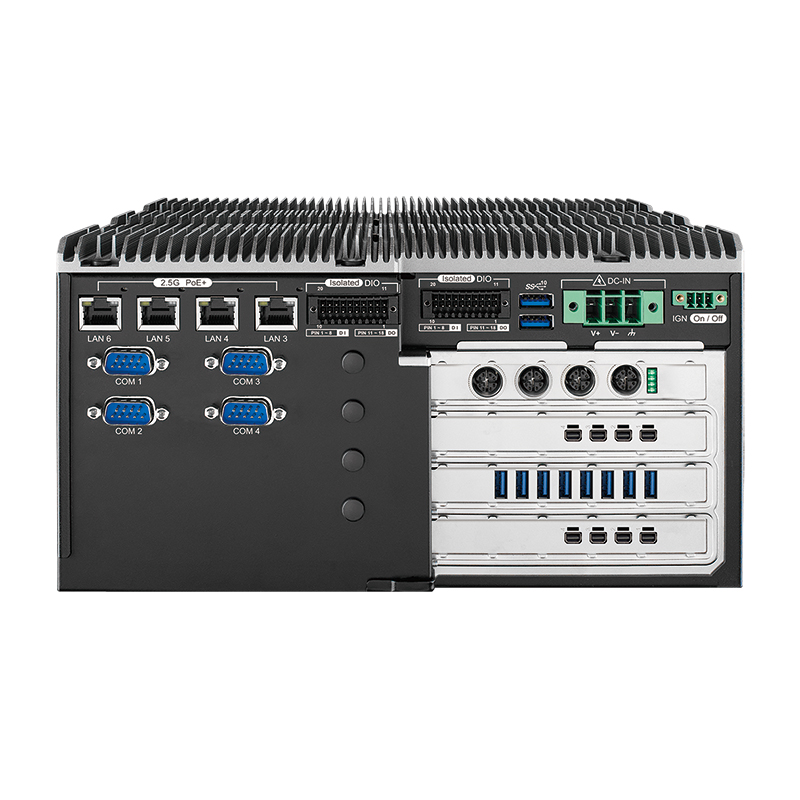

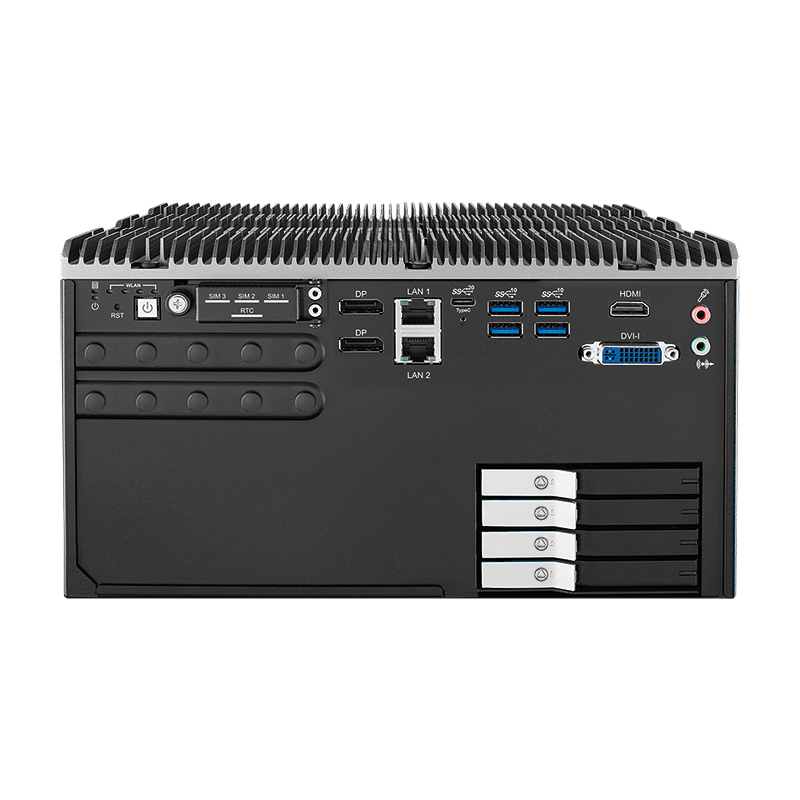

| I/Oインタフェース | |
| シリアルポート | 4 COM RS-232/422/485 |
| USBポート |
– 6 USB 3.2 Gen 2, USB Type A Connector
– 1 USB 3.2 Gen 2×2, USB Type C Connector supports
max20Gbps data transfer (15W, 5V/3A)
|
| Isolated DIO |
32 Isolated DIO (16 DI, 16 DO)
|
| LEDランプ | Power, HDD, PoE, WLAN |
| SIMカード | 3 External Nano SIM Card Socket |
| RTCバッテリー | 1 Front-access RTC Battery |
| 拡張スロット | |
| Mini PCIe | 1 Mini PCIe sockets for PCIe/USB/SIM Card |
| PCIe |
4 PCIe Slot :
– 2 PCIe x16 Slot with x8 signal
– 2 PCIe x8 Slot with x4 signal
|
| M.2 |
– 1 M.2 Key B Socket (3042/2280, PCIe/USB 3, default/USB 2)
– 1 M.2 Key B Socket (3052/2280, PCIe/USB 3, default/USB 2)
– 1 M.2 Key E Socket (2230, PCIe/USB)
|
| グラフィックス | |
| グラフィックス プロセッサ |
Intel® UHD Graphics 770/730 driven by Intel® Xe Architecture |
| インタフェース |
– 1 DVI-I : Up to 1920 x 1080 @60Hz
– 1 HDMI : Up to 1920 ×1080 @60Hz
– 2 DisplayPort : Up to 7680 x 4320 @60Hz/5120 x 2880 @120Hz
– By requested Graphics Card
|
| ストレージ | |
| SATA |
4 SATAIII (6Gbps) suppor tsoftware RAID 0,1,5,10
|
| M.2 | 1 M.2 Key M Socket (2280, PCIe x4) |
| その他 |
4 Front-access 2.5″SSD/HDD Tray
|
| オーディオ | |
| コーデック | Realtek ALC888S-VD, 7.1 Channel HD Audio |
| 端子 | 1 Mic-in, 1 Line-out |
| イーサネット | |
| LAN 1 | Intel® I219LM GigE LAN |
| LAN 2 | Intel® I226-IT 2.5GigE LAN |
| PoE | |
| LAN 3 | 2.5GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I226, RJ45 Connector |
| LAN 4 | 2.5GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I226, RJ45 Connector |
| LAN 5 | 2.5GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I226, RJ45 Connector |
| LAN 6 | 2.5GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I226, RJ45 Connector |
| 電源 | |
| 入力電圧 | DC 12V to 50V |
| インタフェース | 3-pin Terminal Block : V+, V-, Frame Ground |
| イグニッション コントロール |
16-mode Software Ignition Control |
| リモートスイッチ | 3-pin Terminal Block |
| その他 | |
| TPM | Infineon SLB9670 supports TPM 2.0, SPI Interface |
| ウォッチドッグタイマ(WDT) | Reset : 1 to 255 sec./min. per step |
| スマート遠隔制御 | Wake on LAN, PXE supported |
| HW Monitor | Monitoring temperature, voltages. Auto throttling control when CPU overheats. |
| メカニカル設計 | |
| 外形寸法 |
260mm x 240mm x 142mm (10.24″x9.45″x5.59″)
|
| 質量 |
7.5 kg (16.53 lb)
|
| マウント |
– Wallmount by mounting bracket
– VESA Mount (Optional), Rackmount (Optional)
|
| 設置環境条件 | |
| 動作温度 | -20°C to 45°C (-4°F to 113°F), with System Fan |
| 保存温度 | -40°C to 85°C (-40°F to 185°F) |
| 湿度 | 5% to 95% Humidity, non-condensing |
| 相対湿度 | 95% at 45°C |
| 耐衝撃性/耐振動性 | Operating, MIL-STD-810G, Procedure I |
| EMC指令 | CE, FCC, EN50155, EN50121-3-2 |
