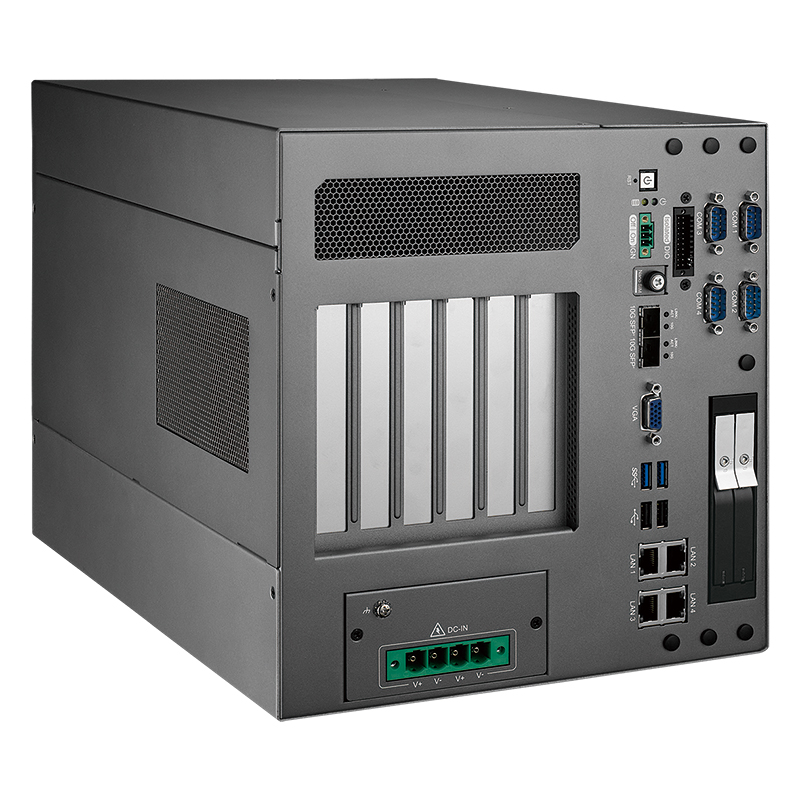

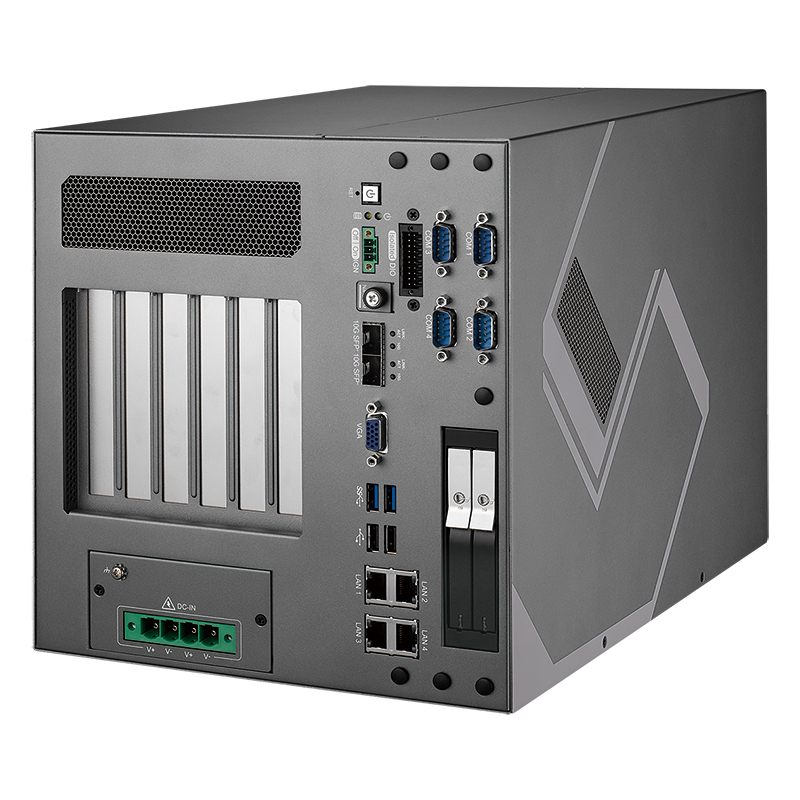

ICS-1000
製品特長
PRODUCT FEATURE
サーバーグレードIntel® Xeon® D-2800/D-2700 プロセッサ採用（Ice Lake D Refresh）
最大給電が1500W対応設計による、900W仕様のNVIDIA®またはAMDへ3スロットフルレングスのGPUをサポート
ソフトウェアによるDC 16V～50VとAC 220Vのイグニッション電源制御が完備
2基10G SFP+、4基GigE LAN、4基USB、32 Isolated DIO
PCIe 4.0 x16、PCIe x8、PCIe x2で最大6本PCIeスロット拡張可能
複数で5G/WiFi 6/4G/LTE/GPRS/UMTS、フロントアクセスの2.5インチSSD/HDDトレイ2基が利用可能
Intel® vPro、Intel® QAT（クイックアシストテクノロジー）、およびTPM 2.0をサポート
TSNとIntel® TCC対応オプションあり
Allxonによるデバイスのリモート保護管理機能サポート（Out-of-Band Remote Management）
-
Power-efficient Performance
The latest Intel Xeon D-2800 processor benefits increased performance, workload optimization, and reduced TCO (Total Cost of Ownership)
Up to 15% power productivity, max 83% performance enhanced than the former generation Intel server-grade SoC platform
DDR4 Memory, up to 512GB, optional supports ECC
High-speed operation : PCIe 4.0 (16GT/s), 10G SFP+, SATA III (6G), USB 3.0 (5G), GigE LAN
-
Server-grade Integration

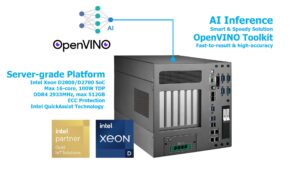

Highly integrated system-on-a-chip for Edge : built-in trusted Intel Ethernet, Intel QAT (QuickAssist Technology) for server-grade connectivity and manageability
High-reliable SFP+ supports max 10Gbps data transfer
Supports Intel vPro, TPM 2.0, PXE, Wake on LAN for remote control
Optional supports TSN and Intel TCC for real-time control
Fully supports Intel OpenVINO toolkit for AI Computing
OS : Windows 10, Windows Server, Linux
-
Industrial Optimization

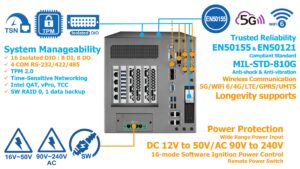

EN50155 & EN50121-3-2 compliant
Anti-shock, Anti-vibration
Multiple high-reliable Intel LAN
Trusted longevity supports
Wide range power input facilitates indoor, outdoor, and even in-vehicle operating environments
16-mode SW Ignition Power Control benefits for in-vehicle operation

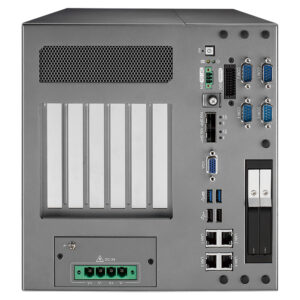

Single Sided Connectors for easier system management
16 Isolated DIO, 4 COM RS-232/422/485
External SIM Socket for 5G/WiFi/BT/4G/LTE/GPRS/UMTS Wireless Communication
Remote Power Switch
-
Flexible Configuration
Flexible product configuration for project requirements
Max 6 PCIe expansions : PCIe 4.0 x16, PCIe x8, PCIe x2
PCIe expansions for multiple 10GigE M12 PoE+ LAN, 10GigE PoE+ LAN, 10GigE LAN, 10G SFP+, 2.5GigE PoE+ LAN, 2.5GigE LAN, 100W PoE++, M12 PoE+ LAN, PoE+ LAN, GigE LAN, LAN Switch, USB, or Discrete Graphics
Max 1800W power budget optional supports levels of full-length discrete graphics, max 10752 CUDA Core Computing
Multiple compact M.2 Key B, M.2 Key E, M.2 Key M connections for Storage and Expansion
Flexible Wide Range Power options : DC 16V to 50 Power Input or AC 90V to 240V Power Input
Optional supports remote device Out-Of-Band management functions powered by Allxon
製品仕様
Product Specifications
| システム | |
| プロセッサ |
– 16-core Intel® Xeon® D-2876NT Processor (Eddy Lake D HCC)
– 12-core Intel® Xeon® D-2752TER Processor (Ice Lake D HCC)
|
| BIOS | AMI |
| SIO | IT8786E |
| メモリ |
8 DDR4 UDIMM/RDIMM 2933MHz, up to 512GB
(ECC support by UDIMM only)
|
| OS | Windows 10, Windows Server, Linux |
| I/Oインタフェース | |
| シリアルポート | 4 COM RS-232/422/485 |
| USB |
– 2 USB 3.0 Type-A
– 2 USB 2.0 Type-A
|
| Isolated DIO | 16 Isolated DIO : 8 DI, 8 DO |
| ディスプレイ | VGA : Up to 1920 x 1080 @60Hz |
| LEDランプ | Power, HDD, Wireless, OOB |
| SIMカード | 1 External Nano SIM Card Socket |
| 拡張スロット | |
| PCIe |
ICS-1660 : 6 PCIe x16 slots with 4 PCIe 4.0 x8, 1 PCIe x8,
1 PCIe x2 signal
ICS-1640 : 4 PCIe x16 slots with 2 PCIe 4.0 x16, 1 PCIe x8, 1 PCIe x2 signal
|
| M.2 |
– 1 M.2 Key B Socket (3042/3052/2280, PCIe x2/USB 3.0)
– 1 M.2 Key E Socket (2230, PCIe x1)
|
| ストレージ | |
| SATA | 2 SATA III (6Gbps) support software RAID 0, 1 |
| M.2 | 1 M.2 Key M Socket (2280/22110, PCIe x2/SATA) |
| その他 | 2 Front-access 2.5″ SSD/HDD Tray |
| イーサネット | |
| LAN 1 | Intel® I350 GigE LAN |
| LAN 2 | Intel® I350 GigE LAN |
| LAN 3 | Intel® I350 GigE LAN |
| LAN 4 | Intel® I350 GigE LAN |
| 10G SFP+ | |
| LAN 5 | 10G SFP+ LAN by Intel® Xeon® SoC (OS Windows Server support only) |
| LAN 6 | 10G SFP+ LAN by Intel® Xeon® SoC (OS Windows Server support only) |
| 電源 | |
| 入力電圧 |
ICS-1600 : DC 16V to 50V
ICS-1600A : AC 90V to 240V
(2000W @220V for dual discrete graphics card operation)
|
| インタフェース | ICS-1600 : 4-pin Terminal Block : V+, V+, V-, V ICS-1600A : 3-pin C14-type AC Plug |
| イグニッション コントロール |
16-mode Software Ignition Control |
| リモートスイッチ | 3-pin Terminal Block |
| Out-of-Band 管理 | |
| MCU | Nuvoton NUC980 |
| インタフェース | OOB LAN, 10/100Mb Ethernet LAN, RJ45 Connector |
| リモート制御 | Support Remote Power ON/OFF, Reset and Power Cycling |
| その他 | |
| TPM | Infineon SLB9670 supports TPM 2.0, SPI Interface |
| ウォッチドッグ タイマ (WDT) |
Reset : 1 to 255 sec./min. per step |
| 遠隔制御 | Wake on LAN, PXE supported |
| HW Monitor | Monitoring temperature, voltages. Auto throttling control when CPU overheats. |
| メカニカル設計 | |
| 外形寸法 | 243.5mm x 271.3mm x 390.0mm (9.58″ x 10.68″ x 15.35″) |
| 質量 | 10.2kg (22.48lb) |
| マウント | Wallmount by mounting bracket |
| 設置環境条件 | |
| 動作温度 |
ICS-1600 : -25°C to 45°C (-13°F to 113°F)
ICS-1600A : -5°C to 45°C (23°F to 113°F)
|
| 保存温度 |
ICS-1600 : -40°C to 85°C (-40°F to 185°F)
ICS-1600A : -20°C to 85°C (-4°F to 185°F)
|
| 湿度 | 5% to 95% Humidity, non-condensing |
| 相対湿度 | 95% @45°C |
| 耐振動性 |
MIL-STD-810G method 514.6, Category 4
|
| 耐衝撃性 | MIL-STD-810G method 516.6, Procedure I |
| EMC指令 | CE, FCC, ICES, EN50155, EN50121-3-2 |
