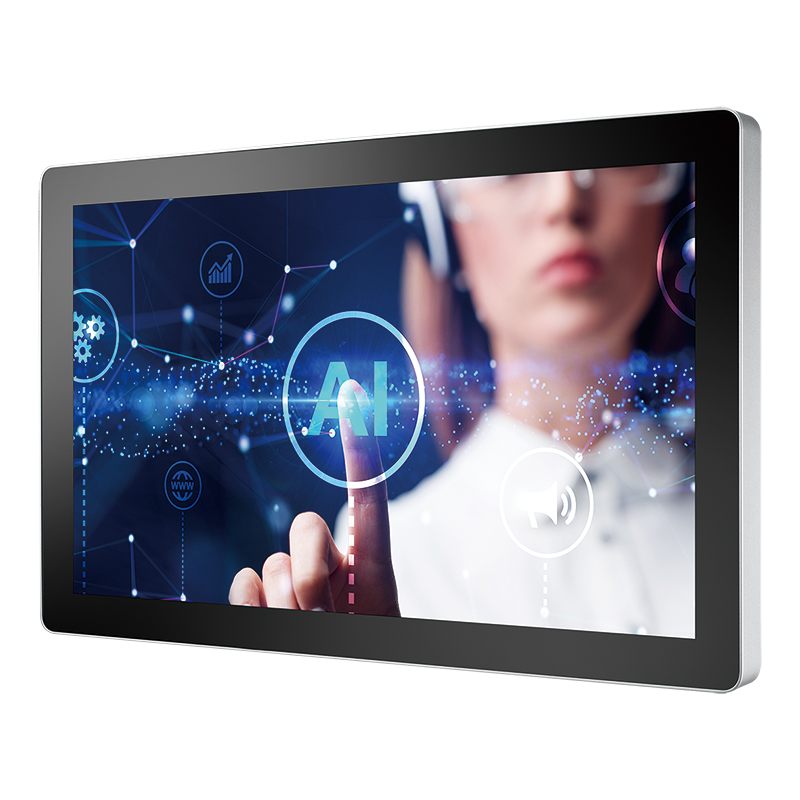

MTC-9021W （i7/i5/i3）
製品特長
PRODUCT FEATURE
・21.5インチ 1920×1080（16:9）フルHD TFT LED液晶
・10点投影型静電容量方式マルチタッチパネル
・第11世代 Intel® Core™ i7/i5/i3 Uシリーズ プロセッサー（Tiger Lake UP3）搭載
・IP65準拠の防塵防滴フロントパネル
・ファンレス設計、動作温度 -5°C〜55°C 対応
・2基10Gbps USB 3.1 Gen 2装備
・簡単にアクセス可能なSSD/HDDキット付き
・9V〜55VDC電源入力
・パネルマウントおよびVESAマウント（75×75、100×100）対応
・M.2 Key Eスロット：Wi-Fi対応
・M.2 Key Bスロット：5G/4G/3G/LTE/GPRS/UMTS/ストレージ対応
製品仕様
Product Specifications
| Panel | |
| Panel type | Full HD TFT LED LCD |
| Size | 21.5″ |
| Max. Resolution | 1920 x 1080 |
| Display Color | 16.7M |
| Brightness (cd/m2) | 250 |
| Viewing Angles (H/V) | 178/178 |
| Contrast Ratio | 3000:1 |
| Touch Screen | |
| Touch Screen Type | 10-point Projected Capacitive |
| Transparency | ≧ 91% |
| Surface Hardness | 7H Surface Hardness |
| Control Interface | USB Type |
| System | |
| Processor | Quad Core Intel® Core™ i7/i5/i3 U-series Processor (Tiger Lake UP3) |
| Chipset | Intel® SoC (Tiger Lake UP3) |
| Memory | 1 DDR4 3200MHz SO-DIMM, up to 32GB |
| Graphics Processor | Intel® Iris®Xe Graphics |

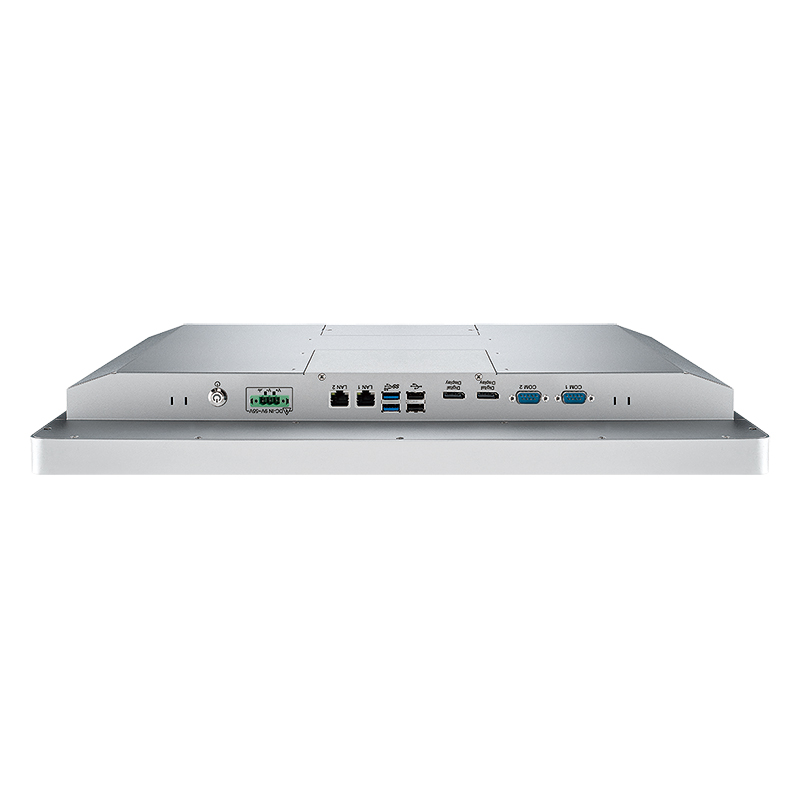

| I/O Interface | |
| Serial | 2 COM RS-232/422/482 (ESD 8kV, DB9 Type) |
| USB |
– 2 USB 3.1
– 2 USB 2.0
|
| LED | Power, HDD, WWAN, WLAN |
| SIM Card | 1 Internal Nano SIM Card Socket |
| Display | 2 DisplayPort：Up to 4096 x 2304 @60Hz |
| Expansion | |
| M.2 |
– 1 M.2 Key B Socket (3042/3052)
– 1 M.2 Key E Socket (2230)
|
| Storage | |
| SATA | 1 SATA III (6Gbps) |
| M.2 | 1 M.2 Key B Socket (2260) |
| Storage Device | 1 2.5″ SSD/HDD Kit |
| Ethernet | |
| LAN 1 | Intel® I219LM GigE LAN supports iAMT 14.0, RJ45 Type |
| LAN 2 | Intel® I225 supports 2.5 GigE LAN |
| Power | |
| Power Input | 9V to 55V DC-in |
| Power Interface | 3-pin Terminal Block：V+, V-, Frame Ground |
| Others | |
| TPM | Infineon SLB9670 supports TPM 2.0, SPI Interface |
| Watchdog Timer | Reset : 1 to 255 sec./min. per step |
| Smart Management | Wake on LAN, PXE supported |
| Software Support | |
| OS | Windows 10, Linux |
| Mechanical | |
| Dimensions | 537.8mm x 329.0mm x 77.1mm (21.17″ x 12.95″ x 3.04″) |
| Weight | 6.35 kg (13.99 lb) |
| Mounting |
– Panel mount
– VESA mount (75 x 75, 100 x 100)
|
| Environment | |
| Operating Temperature | -5°C to 55°C (-23°F to 131°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative Humidity | 95% @55°C |
| Shock |
– IEC 60068-2-27
– 20G, Half-sine, 11ms
|
| Shock |
– IEC 60068-2-64
– Non-operation : 10Hz to 200Hz, 1Grms, X, Y, Z, 30 mins each Axis
|
| EMC | CE, FCC |
∧
