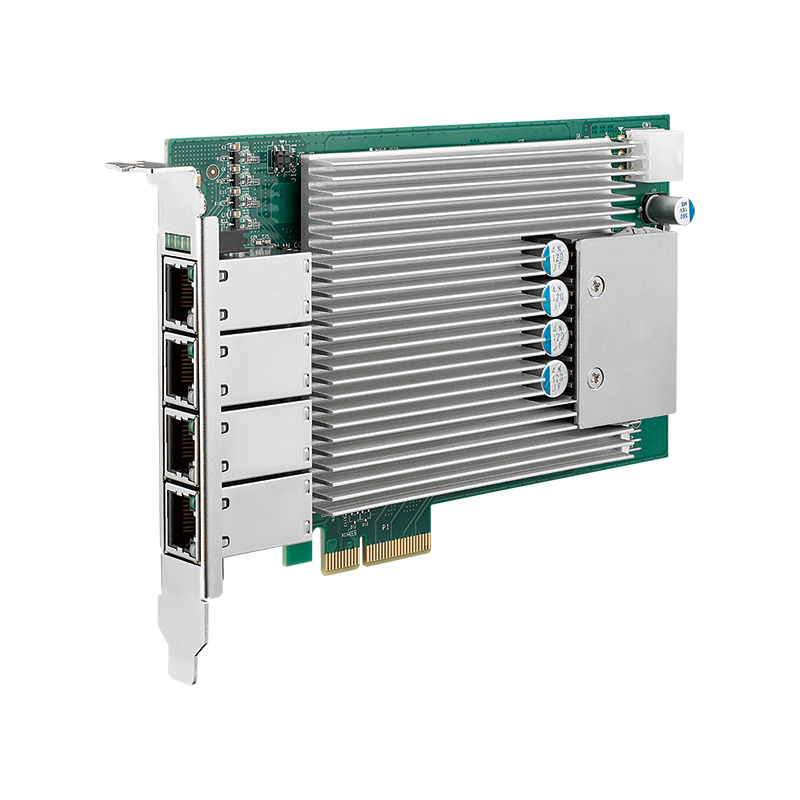

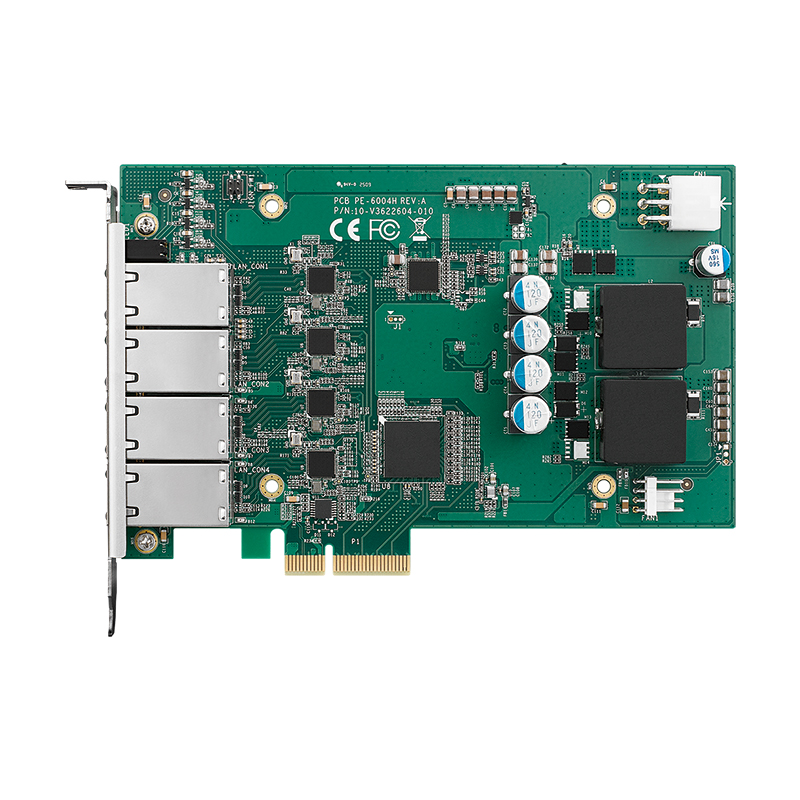

PE-6004H (2.5G PoE+)
製品特長
PRODUCT FEATURE
・IEEE 802.3bt PoE++ PSE compliant, up to 90W per port
・Total PoE power budget up to 200W across 4 ports
・4x 2.5GBASE-T ports with Intel® I226-IT controller
・Supports 2.5G / 1G / 100M / 10M link speeds
・x4, Gen2 PCI Express interface

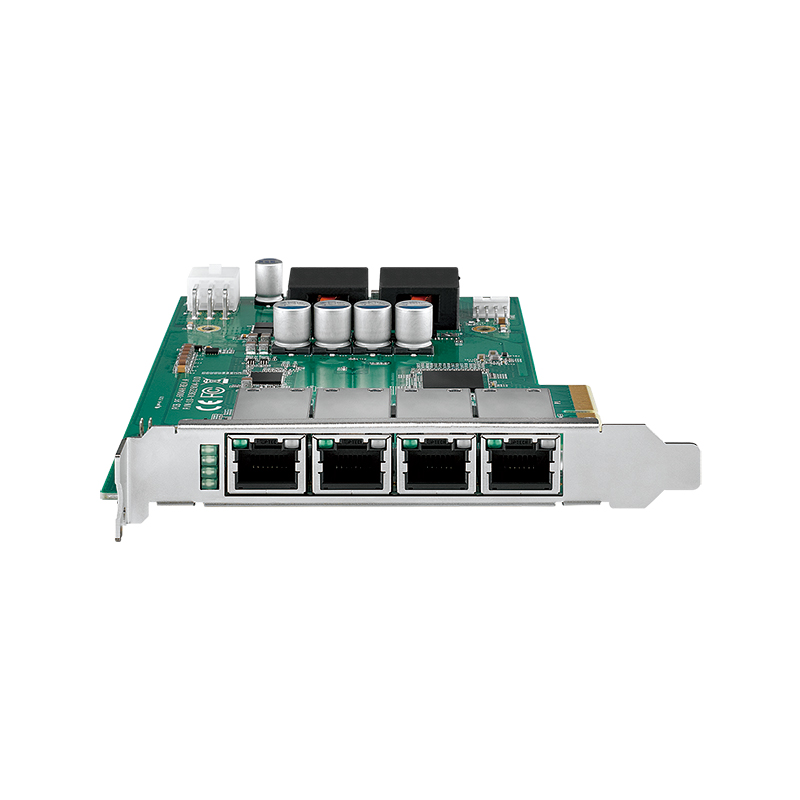

・Standard RJ-45 connectors
・-25°C to 65°C operating temperature
・Per-port PoE+ power on/ off control by software API, supports IEEE 1588
製品仕様
Product Specifications
| Ethernet | |
| Bus Interface | x4, Gen2 PCI Express |
| LAN Controller | Intel® Ethernet Controller I226-IT |
| Controller Q’ty | 4 |
| Data Rate | 2.5Gbps/1Gbps/100Mbps/10Mbps |
| Number of Port | 4 |
| Ethernet Connector | RJ-45 connectors |
| PoE Standard |
– In compliant with IEEE 802.3bt PoE++ Type 3 and Type 4 PSE, maximal 90W output on a single PoE++ port
– Compatible with 802.3at (PoE+) and 802.3af (PoE) PD
|
| Power Requirement | |
| Input | Maximum 12V from on-board 6-pin ATX Power Connector |
| Software Support | |
| OS | Windows 11, Windows 10, Linux |
| Mechanical | |
| Dimension (W x L) | 167mm x 111mm (6.6″ x 4.37″) |
| Bracket | Full height |
| Environment | |

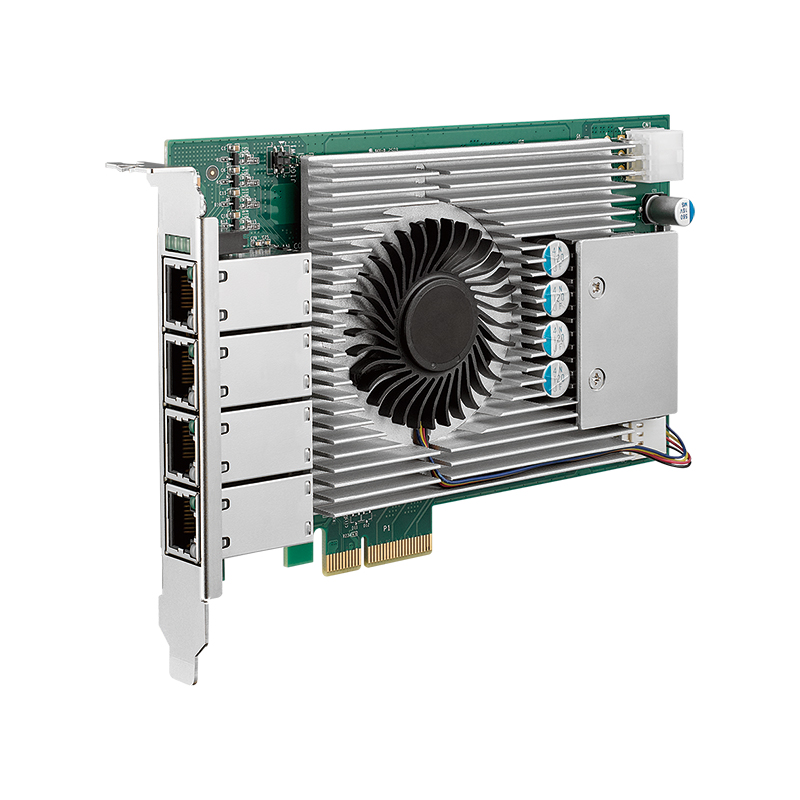

| Operating Temperature | PE-6004H: -25°C to 55°C with air flow (-13°F to 131F) PE-6004HF: -25°C to 65°C with air flow (-13°F to 149°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative Humidity | 95% @ 65°C |
| EMC | CE, FCC |
