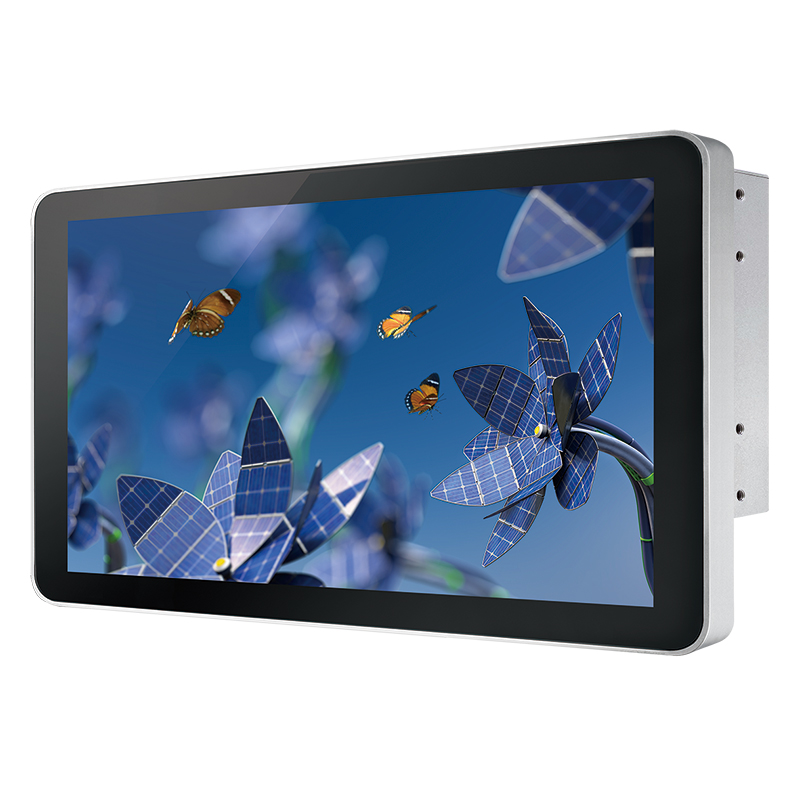

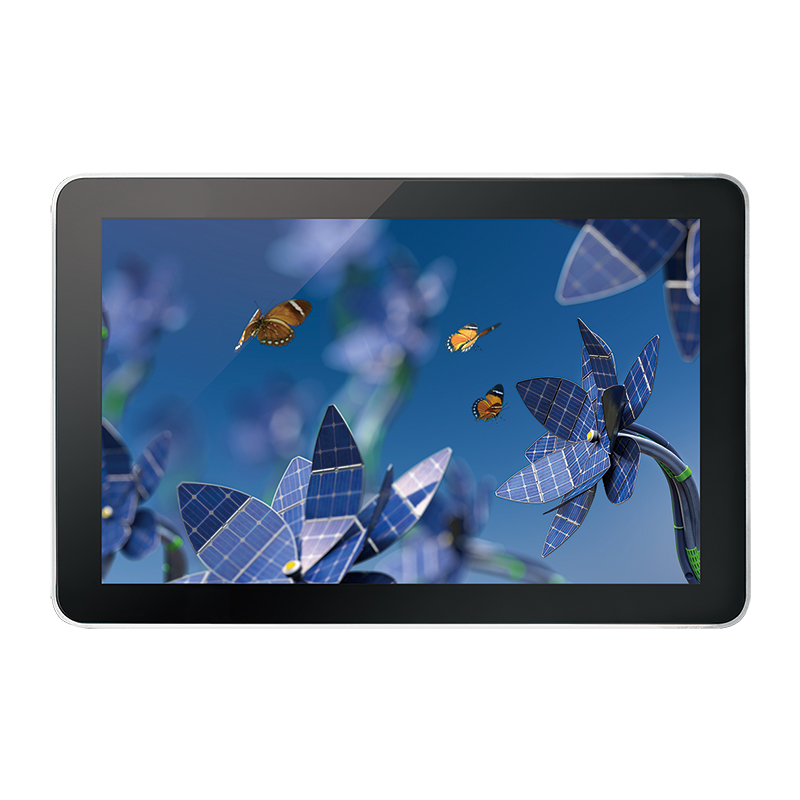

MTA-1010W (i.MX8M Plus)
製品特長
PRODUCT FEATURE
NXP i.MX 8M Plus Quad Core Arm Cortex-A53 搭載
・10.1インチ TFT LCD、最大350ニット輝度
・投影型静電容量式マルチタッチパネル
・2.3 TOPS AI、Ubuntu 22.04対応
・4K60デジタルディスプレイ x 1、オーディオマイク入力＆ライン出力
・GigE LAN、USB 3.1、RS-232/422/485各2基装備
・M.2 Key B、Mini PCIe（デュアル5G/4G/Wi-Fi/BT対応）
・オプションで2基CAN-FD、4点GPIOを拡張可能
・IP65フロントパネル保護
・ファンレス設計、動作温度-20°C～60°C対応
・9V～55VDC 電源入力
製品仕様
Product Specifications
| Panel | |
| Panel type | WSVGA TFT LED LCD |
| Size | 10.1″ |
| Max. Resolution | 1280 x 800 |
| Display Color | 16.7M |
| Brightness (cd/m2) | 350 |
| Viewing Angles (H/V) | 170/170 |
| Contrast Ratio | 800:1 |
| Touch Screen | |
| Touch Screen Type | 10-point Projected Capacitive |
| Control Interface | USB Type |
| System | |
| Processor | NXP i.MX8M Plus Arm® Quad-core Cortex®-A53 |
| Memory | 4GB LPDDR4 SDRAM |

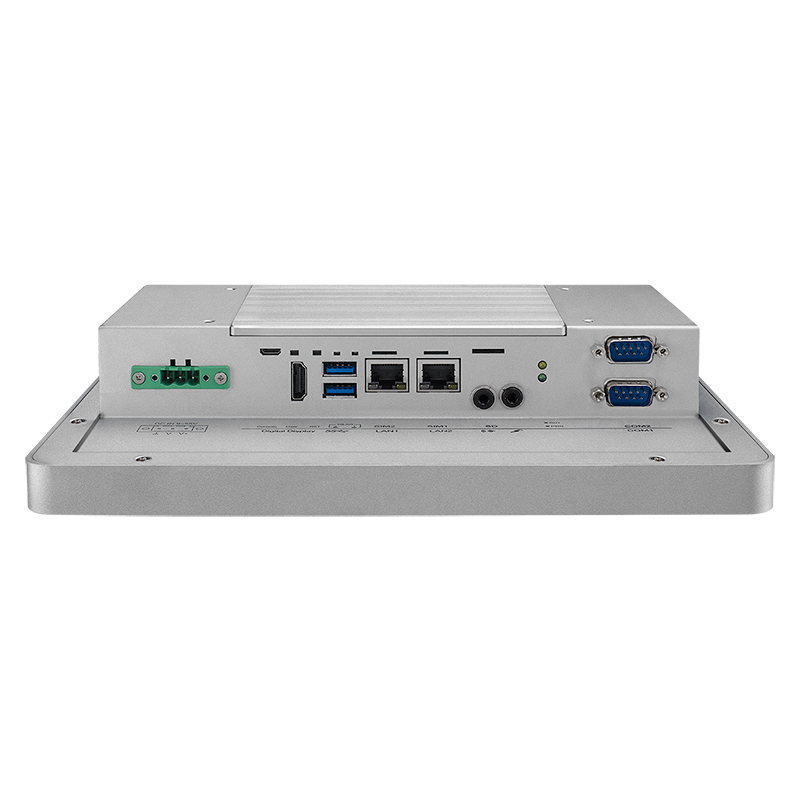

| I/O Interface | |
| Serial | 2 RS-232/422/485 |
| USB | – 2 USB 3.0 |
| LED | Power, RDY, 2 WLAN |
| Display | 1 Digital Display, up to 3840 x 2160 @30Hz |
| Micro USB | Micro USB console debug port |
| Button |
– 1 User-define Button
– 1 Reset Button
|
| Audio | Mic-in, Line-out |
| GPIO | 4-bit GPIO (Optional) |
| SIM | 2 Nano SIM (External) |
| Expansion | |
| Mini PCIe | 1 Full-size Mini-PCIe Socket |
| M.2 | 1 M.2 Key B Socket |
| Storage | |
| eMMC | 1 eMMC, 32GB |
| SD | 1 Micro SD, supports SDHC (External) |
| Ethernet | |
| LAN 1 | 10/100/1000 Base-T Ethernet GigE LAN, RJ45 Connector |
| LAN 2 |
10/100/1000 Base-T Ethernet GigE LAN supports TSN,
RJ45 Connector
|
| Power | |
| Power Input | DC 9V to 50V |
| Power Interface | 3-pin Terminal Block (V+/V-/GND) |
| Software Support | |
| OS |
Ubuntu 22.04 LTS
|
| Mechanical | |
| Dimensions (W x H x D) | 256.5mm x 178.3mm x 69.1mm (10.10″ x 7.02″ x 2.72″) |
| Weight | 1.5 kg (3.3 lb) |
| Mounting |
– Panel Mount (Default)
– VESA Mount (Optional)
|
| IP Rating | Front panel IP65 dust and waterproof compliant |
| Environment | |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature | -30°C to 80°C (-4°F to 176°F) |
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative Humidity | 95% @70°C |
| Shock | – IEC 60068-2-27 |
| Vibration | – IEC 60068-2-64 |
| EMC | CE, FCC |
∧
